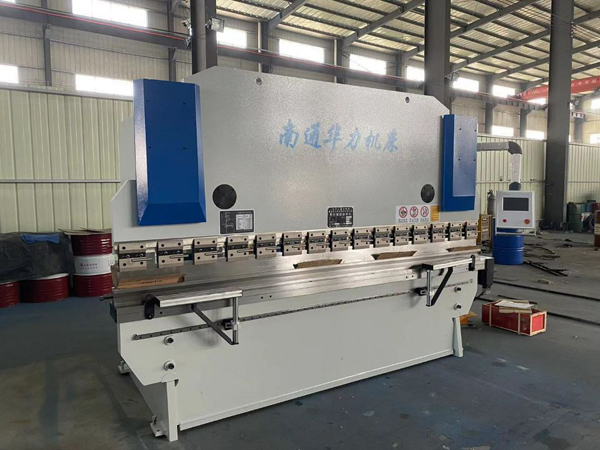

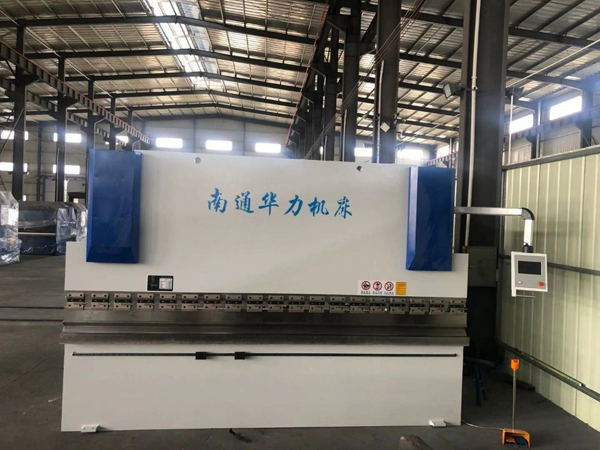

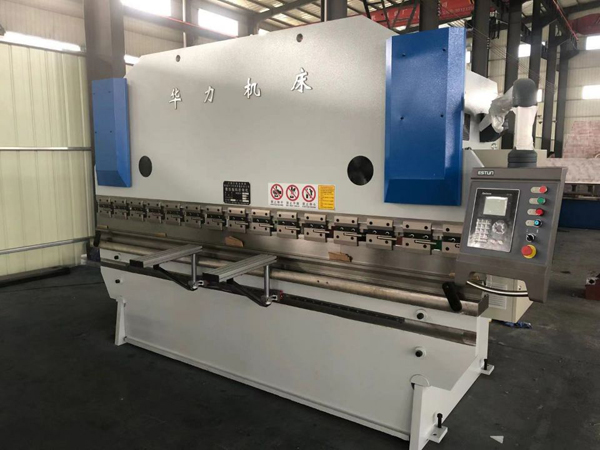

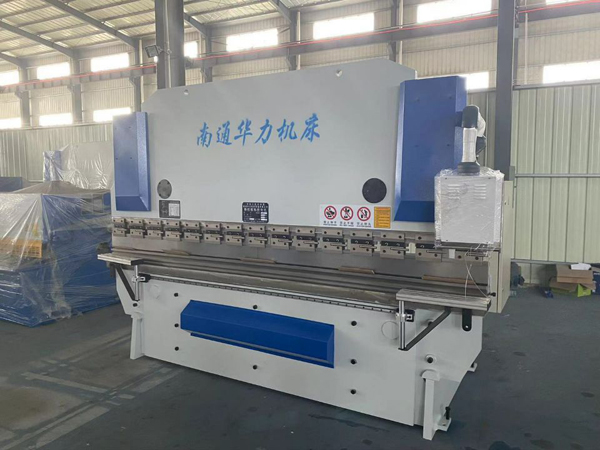

WC67Y系列数控双缸折弯机
性能与特点:
采用全钢焊接结构,具有足够的强度和刚性, 液压上传动滑块同步机构采用扭力轴强迫和机械档块,稳定可靠斜楔式的挠度补偿结构.滑块行程有机动快速调节,有手动调节,计数器显示,后挡料采用机动快速调节,手动微调,计数器显示。
技术参数:
规格/参数 |
公称压力 |
可折板宽 |
立柱间的距离 |
喉口深度 |
滑块行程 |
工作台 大开启高度 |
主电机功率 |
kN |
mm |
mm |
mm |
mm |
mm |
kW |
WC67Y-40/2500 |
400 |
2500 |
1933 |
250 |
80 |
320 |
4 |
WC67Y-63/2500 |
630 |
2500 |
1970 |
250 |
120 |
360 |
5.5 |
WC67Y-63/3200 |
630 |
3200 |
2570 |
250 |
120 |
360 |
5.5 |
WC67Y-80/3200 |
800 |
3200 |
2560 |
320 |
120 |
370 |
7.5 |
WC67Y-80/4000 |
800 |
4000 |
3160 |
320 |
120 |
370 |
7.5 |
WC67Y-100/2500 |
1000 |
2500 |
1960 |
320 |
120 |
370 |
7.5 |
WC67Y-100/3200 |
1000 |
3200 |
2565 |
320 |
120 |
370 |
7.5 |
WC67Y-100/4000 |
1000 |
4000 |
3150 |
320 |
120 |
370 |
7.5 |
WC67Y-100/5000 |
1000 |
5000 |
3950 |
320 |
120 |
370 |
7.5 |
WC67Y-125/2500 |
1250 |
2500 |
1950 |
320 |
120 |
370 |
7.5 |
WC67Y-125/3200 |
1250 |
3200 |
2550 |
320 |
120 |
370 |
7.5 |
WC67Y-125/4000 |
1250 |
4000 |
3150 |
320 |
120 |
370 |
7.5 |
WC67Y-125/5000 |
1250 |
5000 |
3950 |
320 |
120 |
370 |
7.5 |
WC67Y-160/3200 |
1600 |
3200 |
2540 |
320 |
200 |
460 |
11 |
WC67Y-160/4000 |
1600 |
4000 |
3140 |
320 |
200 |
460 |
11 |
WC67Y-160/5000 |
1600 |
5000 |
3940 |
320 |
200 |
460 |
11 |
WC67Y-160/6000 |
1600 |
6000 |
4740 |
320 |
200 |
460 |
15 |
WC67Y-200/3200 |
2000 |
3200 |
2530 |
320 |
200 |
460 |
15 |
WC67Y-200/4000 |
2000 |
4000 |
3130 |
320 |
200 |
460 |
15 |
WC67Y-200/5000 |
2000 |
5000 |
3930 |
320 |
200 |
460 |
15 |
WC67Y-200/6000 |
2000 |
6000 |
4730 |
320 |
200 |
460 |
18.5 |
WC67Y-250/3200 |
2500 |
3200 |
2530 |
400 |
250 |
510 |
18.5 |
WC67Y-250/4000 |
2500 |
4000 |
3130 |
400 |
250 |
|
18.5 |
WC67Y-250/5000 |
2500 |
5000 |
3930 |
400 |
250 |
|
18.5 |
WC67Y-300/4000 |
3000 |
4000 |
3120 |
400 |
250 |
|
22 |
WC67Y-300/5000 |
3000 |
5000 |
3920 |
400 |
250 |
|
22 |
WC67Y-300/6000 |
3000 |
6000 |
4720 |
400 |
250 |
|
22 |
WC67Y-400/5000 |
4000 |
5000 |
3920 |
400 |
300 |
|
30 |
WC67Y-400/6000 |
4000 |
6000 |
4710 |
400 |
300 |
|
37 |
WC67Y-500/6000 |
5000 |
6000 |
4700 |
400 |
300 |
|
37 |
WC67Y-800/6000 |
8000 |
6000 |
4650 |
500 |
400 |
|
55 |
WC67Y-1000/6000 |
10000 |
6000 |
4600 |
600 |
450 |
|
75 |
WC67Y-1200/6000 |
12000 |
6000 |
4600 |
600 |
450 |
|
90 |
