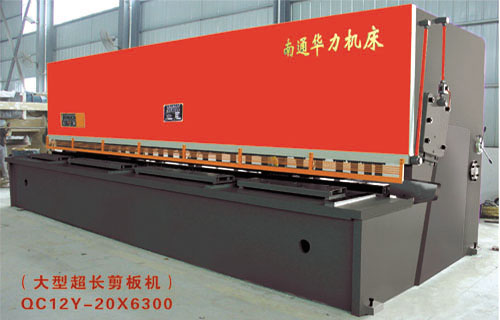

QC12Y系列大型深喉口液压摆式剪板机
性能与特点： 采用钢板焊接结构，液压传动，氮气缸回程，操作方便，性能可靠，外形美观。
刃口间隙调整有指示牌指示，调整轻便迅速。
设有灯光照明装置，并能无级调节上刀架的行程量。
工作区采用栅栏式人身安全保护装置。
后挡料尺寸及剪切次数有数字显示装置。
技术参数：
|
型号 |
剪板尺寸
厚×宽（毫米） |
剪切角（度） |
行程次数
次/数 |
后档料架调节范围
MM |
主电机
KW |
外型尺寸
长×宽×高 |
|
QC12Y4x3200 |
4x3200 |
1°30′ |
18 |
20-600 |
5.5 |
3840x1675X1600 |
|
QC12Y6x2500 |
6x2500 |
1°30′ |
18 |
20-600 |
7.5 |
3130X1530X1600 |
|
QC12Y6x3200 |
6x3200 |
1°30′ |
14 |
20-600 |
7.5 |
3840X1675X1620 |
|
QC12Y6x4000 |
6x4000 |
1°30′ |
14 |
20-600 |
7.5 |
4630X1850X1700 |
|
QC12Y6x5000 |
6x5000 |
1°30′ |
10 |
20-800 |
18.5 |
5660X2050X1950 |
|
QC12Y6x6000 |
6x6000 |
1°30′ |
10 |
20-800 |
18.5 |
6700X2300X2300 |
|
QC12Y8x2500 |
8x2500 |
1°30′ |
14 |
20-600 |
11 |
3130X1530X1600 |
|
QC12Y8x3200 |
8x3200 |
1°30′ |
10 |
20-600 |
11 |
3840X1675X1620 |
|
QC12Y8x4000 |
8x4000 |
1°30′ |
8 |
20-600 |
11 |
3840X1850X1700 |
|
QC12Y8x5000 |
8x5000 |
1°30′ |
7 |
20-800 |
18.5 |
4630X2050X1950 |
|
QC12Y8x5000 |
8x6000 |
1°30′ |
6 |
20-800 |
18.5 |
6750X2330X2230 |
|
QC12Y10x2500 |
10x2500 |
1°30′ |
14 |
20-800 |
15 |
3130X1580X1800 |
|
QC12Y10x3200 |
10x3200 |
1°30′ |
12 |
20-800 |
15 |
3840X1725X1850 |
|
QC12Y10x4000 |
10x4000 |
1°30′ |
12 |
20-800 |
15 |
4630X1900X1850 |
|
QC12Y12x2500 |
12x2500 |
1°30′ |
16 |
20-800 |
18.5 |
3235X2045X1935 |
|
QC12Y12x3200 |
12x3200 |
1°30′ |
14 |
20-800 |
18.5 |
3945X2227X2115 |
|
QC12Y12x4000 |
12x4000 |
1°30′ |
14 |
20-800 |
18.5 |
4695X2227X2200 |
|
QC12Y12x5000 |
12x5000 |
1°30′ |
7 |
20-1000 |
45 |
6100X3370X3050 |
|
QC12Y12x6000 |
12x6000 |
1°30′ |
6 |
20-1000 |
45 |
7100X3370X3050 |
|
QC12Y12x8000 |
12x8000 |
1°30′ |
5 |
20-1000 |
45 |
9100X3575X3150 |
|
QC12Y16x2500 |
16x2500 |
2° |
16 |
20-650 |
18.5 |
3235X2050X1985 |
|
QC12Y16x3200 |
16x3200 |
2° |
12 |
20-800 |
22 |
3950X2230X2150 |
|
QC12Y16x4000 |
16x4000 |
2° |
10 |
20-800 |
22 |
4700X2230X2250 |
|
QC12Y20x2500 |
20x2500 |
2°30′ |
5 |
20-1000 |
37 |
3290X2900X2450 |
|
QC12Y20x3200 |
20x3200 |
2°30′ |
4 |
20-1000 |
37 |
4000X3100X2600 |
|
QC12Y20x4000 |
20x4000 |
2°30′ |
3 |
20-1000 |
37 |
4750X3300X2800 |
|
QC12Y20x6000 |
20x6000 |
2°30′ |
3 |
20-1000 |
75 |
7050X3480X3050 |
|
QC12Y25x2500 |
25x2500 |
2°30′ |
6 |
20-1000 |
45 |
3500X3150X3500 |
|
QC12Y25x3200 |
25x3200 |
2°30′ |
5 |
20-1000 |
45 |
4200x3150x3500 |
|
QC12Y25x4000 |
25x4000 |
2°30′ |
5 |
20-1000 |
45 |
4850x3300x3500 |
|
QC12Y32x2500 |
32x2500 |
3° |
5 |
20-1000 |
55 |
3500x3150x3500 |
|
QC12Y32x3200 |
32x3200 |
3° |
4 |
20-1000 |
55 |
4200x3150x3500 |
|
QC12Y40x2500 |
40x2500 |
4° |
5 |
20-1000 |
75 |
3600x3300x3200 |
|
QC12Y40x3200 |
40x3200 |
4° |
3 |
20-1000 |
90 |
4300x3300x3400 |
|
QC12Y50x3000 |
50x3000 |
3° |
5 |
|
90X3 |
4040X3600x4800 |
|
QC12Y50x6000 |
50x6000 |
3° |
5 |
|
90X5 |
7040x2800x5100 |
|
QC12Y60x3500 |
60x3500 |
3°30′ |
5 |
|
90X4 |
5600x3800x4900 |
